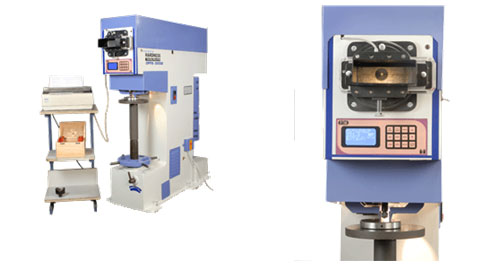

Digital Brinell Hardness Testing Machine OPFB 3000 D



    Salient Features of Digital System:


  • User friendly system.

  • 21 x 8 Line Display.

  • Keyboard Entry for Serial No, Batch No, Date Time.

  • Ball diameter / Load Selection: 2.5mm/187.5kgf, 5mm/250kgf, 5mm/750kgf, 10mm/500kgf, 10mm/1000kgf, 10mm/3000kgf.

  • Ball Type Selection: Tungsten / Steel.

  • User can set zero and move cursor for X and Y measurement.

  • Direct BHN reading after pressing BHN key.

  • Optional conversion result facility for other scales (Vickers HV, Knoop HK, Tensile Strength KSI, Microficial WMN.

  • Battery Backup Real Time clock.

  • Results displayed in BIG font.

  • For average option, up to 9 previous readings displayed while measurement.

  • Batch Facility - User can decide no. of samples in batch.

  • Batch wise reports and statistical reports on display as well as on printer.

  • User can scroll report on display with UP/DOWN key.

  • All Results reports are displayed and Printed on Printer.

  • All Reports are transferred on Serial Port.

  • RS232C Port Baud Rate is Programmable.

  • User can use and standard Communication Hyper terminal for capturing data.

  • Or FMI can supply capture software.

  • 500 results are stored in the system.

  • User can enable auto result store in memory.
