Brinell Hardness Tester Model : B 3000 (H)

Machine designed with a hydraulic power pack   and control circuits for effortless loading unloading operations.

Tests Loads - 500 to 3000 kgf in steps of 250 kgf.

A dial gauge in front measures depth of ball penetration.

This facilitates production testing within tolerance limits by      compression method.

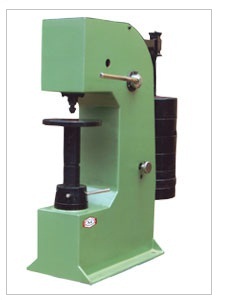

Brinell Hardness Tester Model : SE B3000 (J)

Simplest model of Brinell Hardness Tester with mechanical design.

Loading, unloading manual, Best suitable for testing batch quantities.

Brinell Hardness Tester Model : B3000-PC

Fully Computerised (PC Based) Brinell Hardness Tester.

Direct and accurate measurement of Brinell hardness number using 'State of the Art' image processing technology.

'Wide Testing Range': from soft metal to medium hardness steels.

High Accuracy and repeatability of measurement at all loads.

Faster measurement yielding to higher productivity.

Hydraulic loading and unloading cycle.

Advance Windows based software.

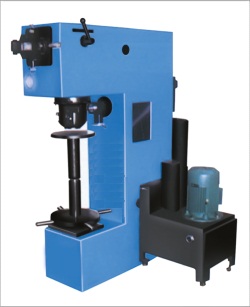

Brinell Hardness Tester Model : B 3000 (O)

Basic machine design and operation smiliar to B-3000(H).

In addition, an 'Optical Device' with 14x magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01 mm accuracy.

The indentor swivels and projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression.

Tests Loads - 500 to 3000 kgf in steps of 250 kgf.

Built in optical system with 14 X magnification.

Also Available: Computerised Image Processing Model B 3000 PC
